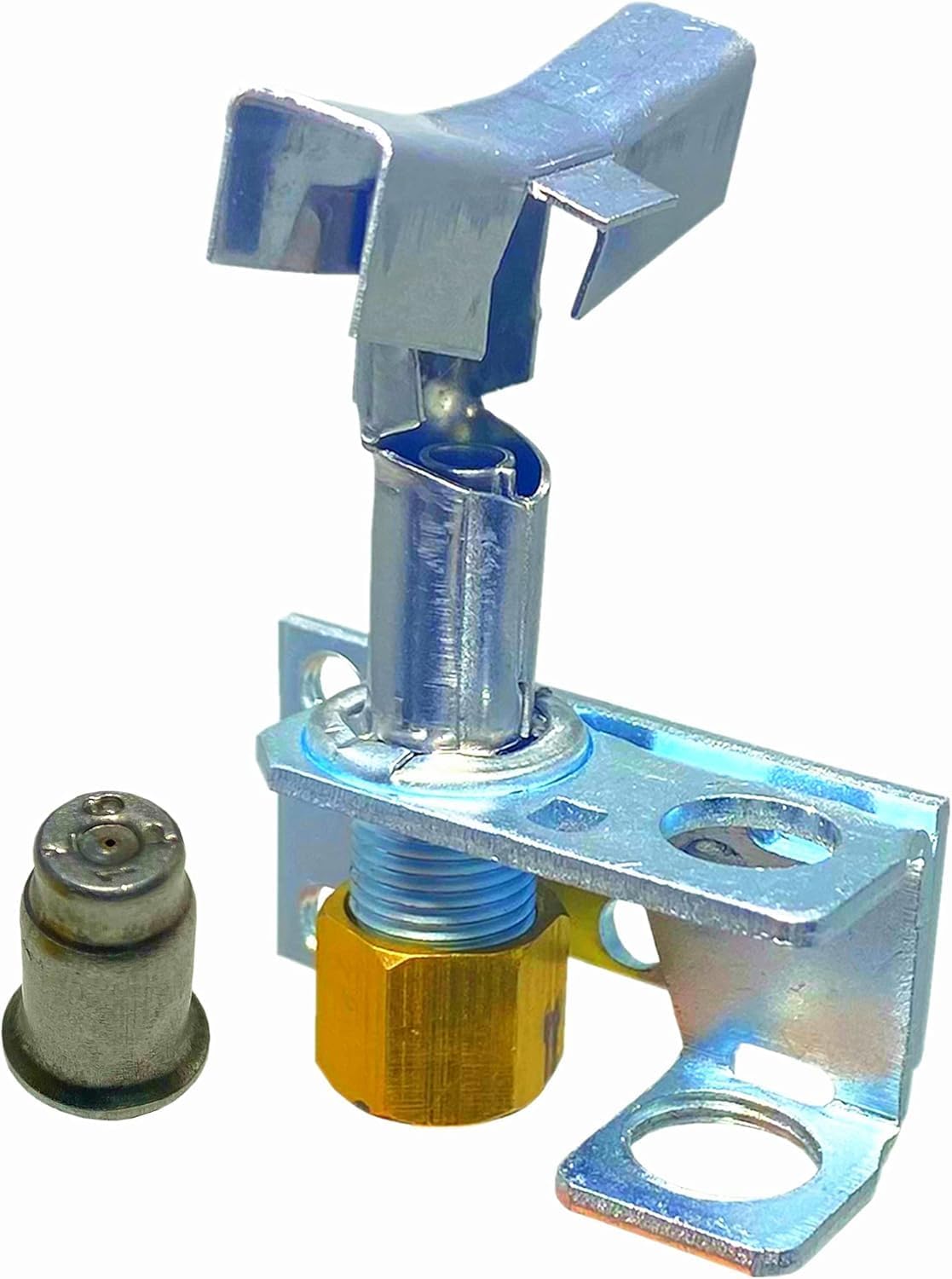

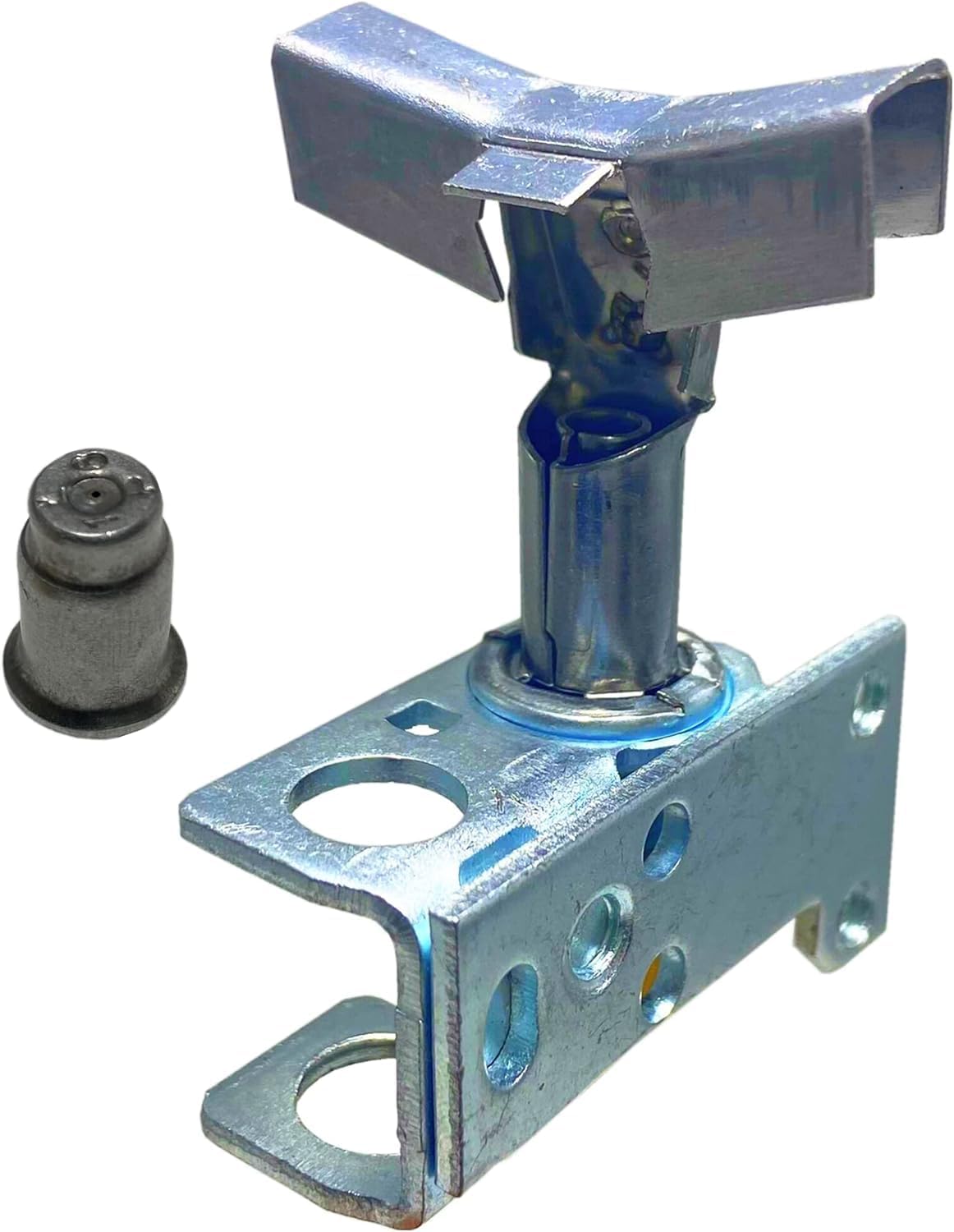

MENSI Propane LP/Natural Gas Pilot Burner Assembly Compatible with Cecilware Fryer Imperial,LENNOX, FRYMASTER Fryer, Work with 700-506 HVAC Gas Valve

Troubleshooting : If the valve fails to open, check the no load volatage of the thermopile. Use a multimeter to measure the thermopile voltage when there is no flame to see if it is insufficient. Check if the thermostat is short-circuited. Remove the thermostat, reconnect the circuit, and check if it works normally. Check if the nozzle is clogged. Oil contamination blocking the nozzle hole may cause insufficient gas flow, leading to a reduced flame and thus insufficient voltage to open the valve. Therefore, you need to clean the nozzle regularly.

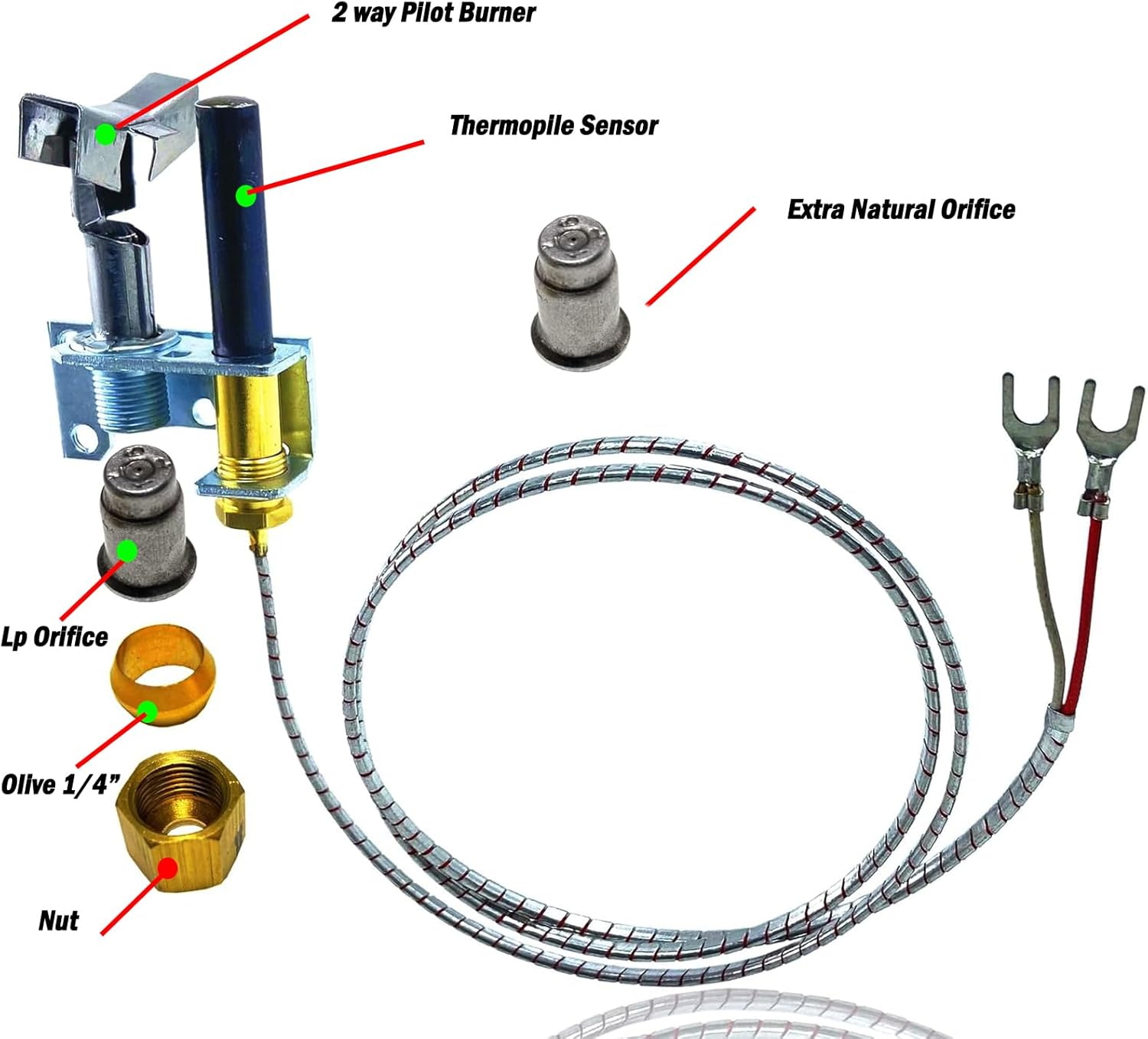

• ❤ Pilot with LP Propane Orifice inside and include an extra Natural Jet orifice for replace for your deep fryer application if you want use different gas type. 1/4" Pilot Entry Compression Fitting fits standard 1/4" Tubing.
• ❤ Fryer Pilot Assembly mount with 36" Thermopile. Each Sets was tested and over 750mV output un-load Volatge to open the main gas valve.
• ❤ Perfect fits and connect with Robertshaw 700-506 HVAC Gas Valve Compatible with Cecilware Fryer Imperial,LENNOX, FRYMASTER Fryer.
• ❤ Pilot burner can be replacement for Cecilware 179A.F180A.179F.F180A.GMF180A.GMF180F; Imperial 0310.1095-16.1095-26; Royal Range 3231.3232; Tri-Star 300231.TS-1095-16.TS-1095-26;Hobart 00-412212-00001.00-412212-00002.00-412212-00007.00-412212-1/2/7.00-721028-00001.112212-1.112212-2.21028-1.412212-00001.412212-00002.412212-00007.412212-1.412212-1/2/7.412212-2.412212-7.5114677.21028-00001.721028-1; Grindmaster 180A.F179A.F179A/F180A.F179F.F180A.F180F.
• ❤ compatible with VULCAN HART fryer GF(91G,92G), HF91G, HF92G (OLD 7891G & 7892G),TK-35. SERIES: EF 1GR45M, 1GR65M, 1GR85M, 1GRC35, 1GRC45, 1GRC65, 1GRD45,1GRD65, 1GRS35, 1GRS45, 1GRS65, EF3, EF4, EF5, GR35, GR35F,GR45, GR45F, GR65, GR65F, GR85, GR85F, GRC35F, GRC45F,GRC65F, GRC85F, GRD35F, GRD45F, GRD65F, GRD85F, GRS35F,GRS45F, GRS65F, GRS85F SERIES: 7400, 7500, 7800; Cecilware fryer FMP 30, 40B, 403, 65, FMS 30, 54; Imperial Fryer Series:IF, IHR, IR; TRI-STAR FRYER; WOLF FRYER WTF-35.
• ❤ Pilot Tubing not include, but with the gas entry olive and nuts include for pilot side. If the main valve, cannot be open, you can test the pilot directly by multimeter and test if volatage over 300mV, normally the gas valve only need around 200mV to get open, if not open you need carefully check your connection with thermostat and high limit get circuit issue and try again.
